Constant I/O | Blend Trees and Animations | Week 2

Wednesday, February 13th 2019, 1:13:09 am

After watching this amazing video tutorial on YouTube on making 2D games, this week’s breakthrough is discovering the magic of blend trees. Before watching this video, I hadn’t really used blend trees. However, I was somehow trying to give my character a bit more complexity than Couch Ferret’s archer character in the video using raw, animation state machines to limited success.

For one, I wanted my game’s character avatar to be able to transition between idle, aiming and firing animations on only the upper body sprite and preserve independence from the lower body (after all, the player might running AND in the above states at the same time). Similar to Couch Ferret’s video, in that regard. Only I had started with a very rudimentary state machine in my game prototype that looked like this:

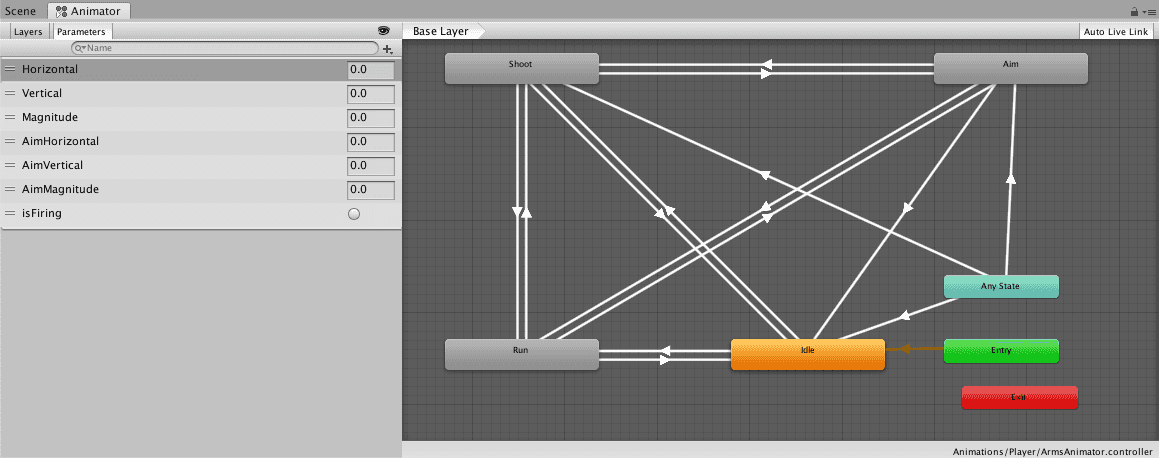

state machine

Not terrible, per se, but starting to get very complicated. Too many in/out transitions to manage, etc.

However, after discovering the magic of blend trees, I refactor the state machine into this, blend-tree based state machine:

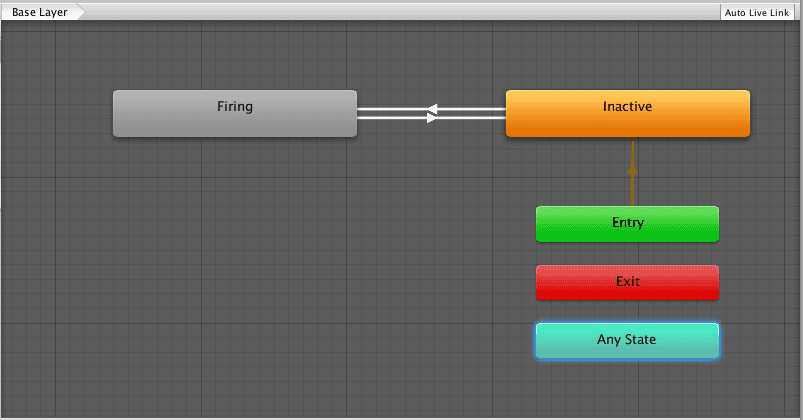

better state machine

Under the “Inactive” state, I hid the following blend tree:

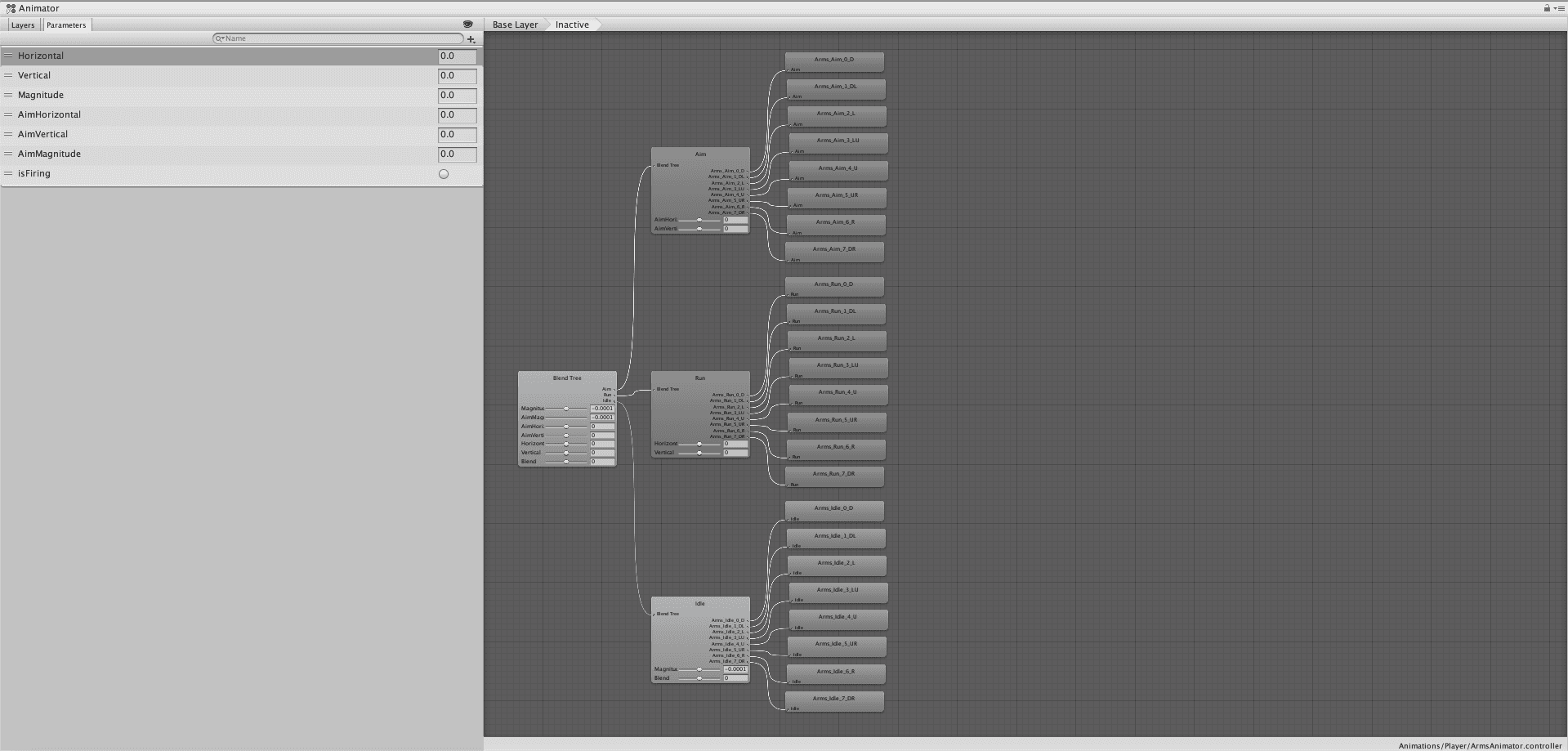

blend tree1

This proved to not work all that well, so I had to break it up into actually a blend tree with another sub-blend-tree.

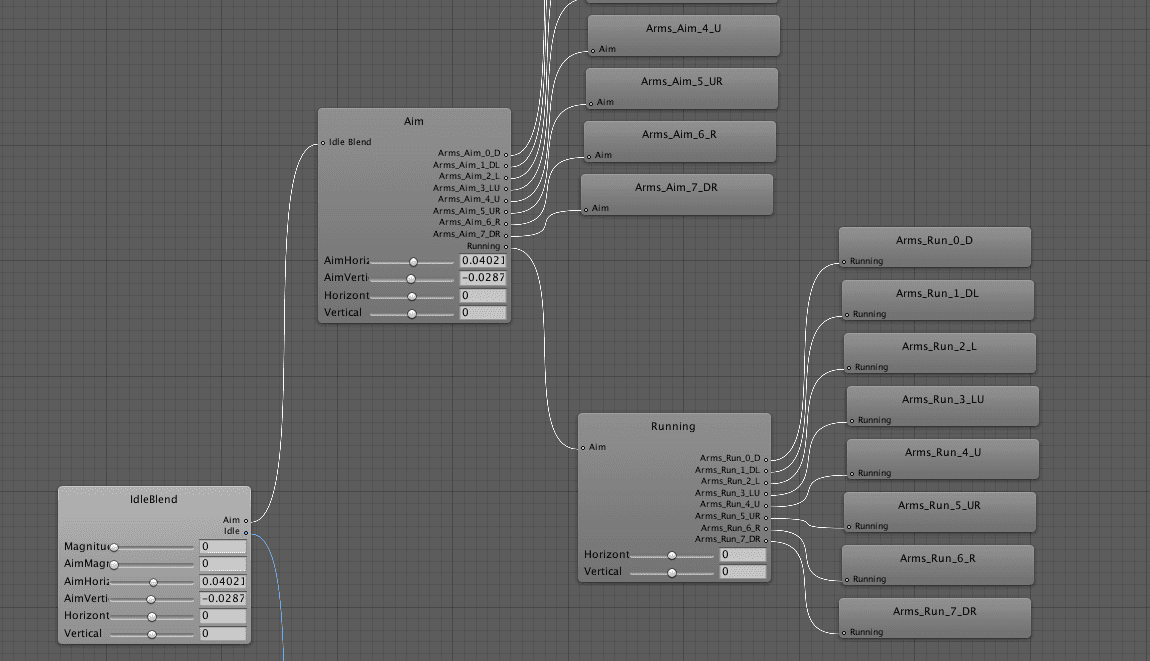

better blend tree

better blend tree2

After putting together a little tilemap…

I ended up with the following result:

I’m pretty satisfied with the end result since it seems to transition between all the states very smoothly and with easy to manage code.

That’s it for now, perhaps next week I’ll start being able to use this guy:
